Our Company new machine Common Rail Test Bench CRS-668c
diesel fuel injection pump test bench EPS918,CR918/CR825
optional add EUI/EUP and XPI

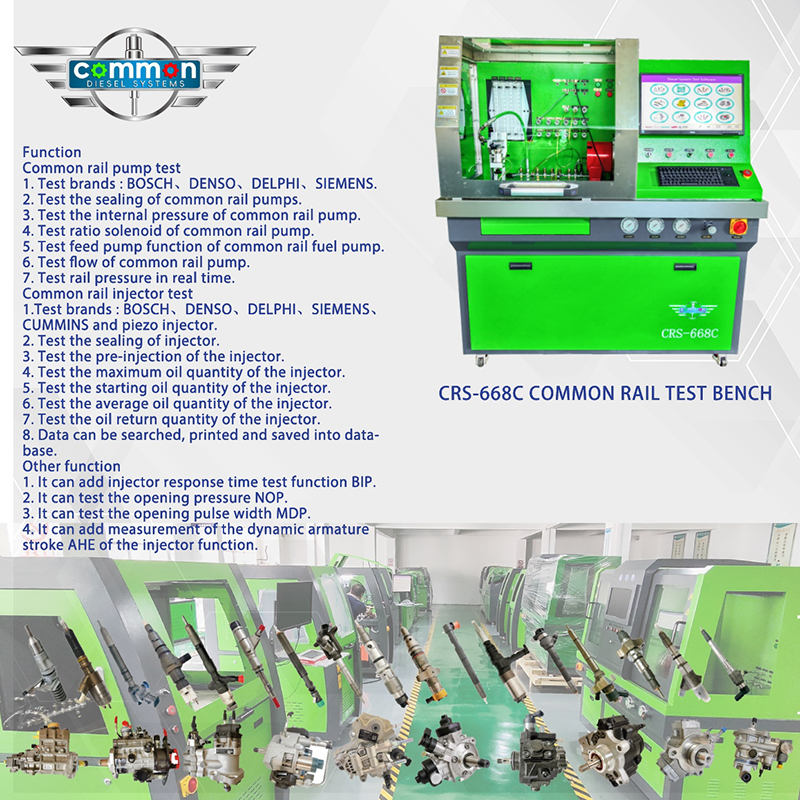

CRS-668C test bench is special device to test the performance of high-pressure common rail pump and injector, it can test common rail pump, injector of BOSCH, SIEMENS, DELPHI, CUMMINS and DENSO and piezo injector. This equipment fully simulates the injection system principle of a high-pressure common rail engine. The main drive adopts a servo motor drive, which has high output torque and ultra-low noise. The common rail pump and injector are tested with imported flow sensors, which have high test speed, more accurate and stable measurement. It can test the Carter 320d common rail pump. The test bench controls the oil pump speed, injection pulse width, oil metering, and rail pressure in real time by an industrial computer. The 21-inch LCD screen has a clearer display and has more than 6,000 types of debugging data that can be queried and printed (optional). It is reliable and stable, with high control precision. The outer shell is manufactured by CNC equipment, which is beautiful and durable. CRS-668C can fulfill the remote assistance by internet and make the maintenance easy to operate.
1. The main motor adopts servo motor and servo drive control, which has precise control, low noise, smooth operation and small vibration.
2. Controlled by industrial computer in real time, linux or WIN7 operating system. Fulfill the remote assistance by internet and make the maintenance easily to operate.
3. The oil volume is measured by a high-precision flow sensor and a measuring cylinder.
4. Rail pressure controlled by DRV, pressure measured in real time and is controlled by closed loop, high-pressure protection function.
5. Injector uses independent motor control system for rapid testing.
6. Injector drive signal pulse width is adjustable.
7. It has short circuit protection function.
8. It can test CAT 320D high pressure common rail pump.
9. It can test injector solenoid valve resistance and inductance.
10. It can test common rail injector capacitance.
11. It can test the opening pressure of the injector.
12. Highest pressure can reach 2300bar.
13. It can test Bosch 6, 7, 8, 9 bit, Denso 16, 22, 24, 30 bit, Delphi C2i, C3i encoding;
14. It can measure dynamic armature stroke AHE.
15. It’s with oil lubrication function.
16. Software data upgrade easily.
17. Remote controllable.
18.optional to test HP5/HP6 pump
3. Functions
3.1Common rail pump test
1. Test brands : BOSCH,DENSO,DELPHI,SIEMENS.
2. Test the sealing of common rail pumps.
3. Test the internal pressure of common rail pump.
4. Test ratio solenoid of common rail pump.
5. Test feed pump function of common rail fuel pump.
6. Test flow of common rail pump.
7. Test rail pressure in real time.
3.2 Common rail injector test
1.Test brands : BOSCH,DENSO,DELPHI,SIEMENS,CUMMINS and piezo injector.
2. Test the sealing of injector.
3. Test the pre-injection of the injector.
4. Test the maximum oil quantity of the injector.
5. Test the starting oil quantity of the injector.
6. Test the average oil quantity of the injector.
7. Test the oil return quantity of the injector.
8. Data can be searched, printed and saved into database.
3.3 Other function
1. It can add injector response time test function BIP.
2. It can test the opening pressure NOP.
3. It can test the opening pulse width MDP.
4. It can add measurement of the dynamic armature stroke AHE of the injector function.
5.optional to test HP5/HP6 pump
1. Pulse width: 0.1-3ms adjustable.
2. Fuel temperature: 40±2℃.
3. Rail pressure: 0-2300 bar.
4. Oil temperature control: heating/double paths forced cooling.
5. Test oil filtered precision: 5μ.
6. Input power: AC 380V/50HZ/3Phase or 220V/60HZ/3Phase;
7. Rotation speed: 100~3000RPM;
8. Fuel tank volume: 40L. Hydraulic oil tank volume: 20L.
9. Common rail pump: Bosch CP3.3
10. Center height: 125MM.
11. Motor output power: 11KW.
12. Flywheel inertia: 0.8KG.M2.
13. Overall dimension (MM): 1910×1000×1835.
14. Weight: 800 KG.
We can accept T/T
Delivery Time:10-15days after received your payment.

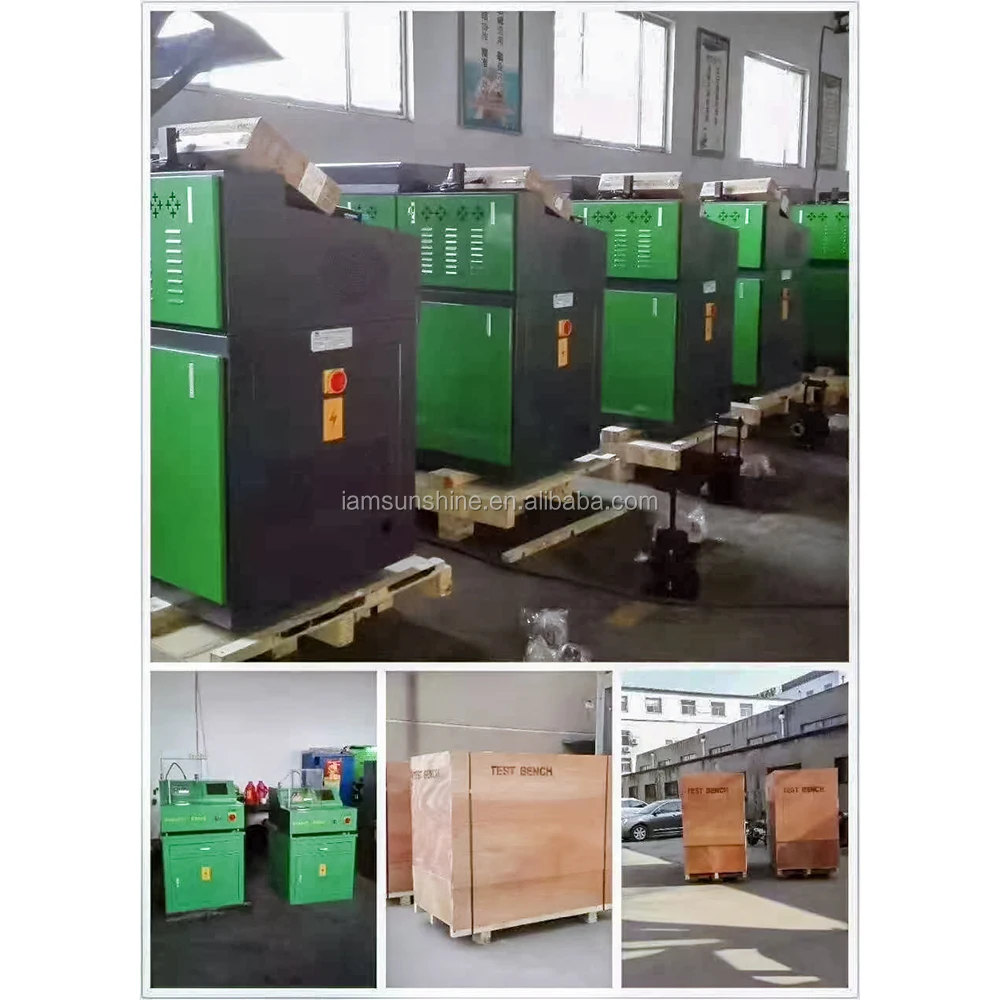

Packaging Details:Plywood case.
