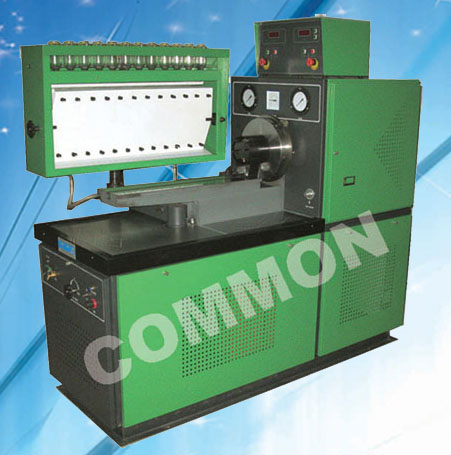

OEM/ODM Factory Common Rail System Test Bench - COM-F fuel injection pump test bench – Common

By adopting high performance/low noise inverter and advanced technique, COM-F fuel injection test stand has more and more advantages, such as: wide ranges of adjustment speed, stable speed, large torque, easy operation and so on. The test stand uses digital indicators to display speed, count.
The COM-F range of test stands will (depending on the power specified) test most inline and rotary diesel pumps in use for on-highway and industrial applications.
 COM-F 5.5KW, 7.5KW, 11KW and 15KW available.
FEATURES
Changing frequency changing rotation speed continuously;
Low fall of rotational speed and high output torque;
High precision;
The function of over voltage and overload protecting;
Low noise;
Digit-display rotation speed, count and air pressure;
Built-in air resource.

FUNCTIONS
Measurement of the delivery at various rotation speeds;
Checking of each line’s injection timing with static;
Checking of the mechanical speed governors;
Checking of the electromagnetic valve of distributor pump;
Checking of the pneumatic speed governors;
Checking of the pressure compensators (LDA);
Checking of the vacuum capacity regulators;
Checking of sealing of the fuel injection pump body.
TECHNICAL DATA
Range of rotational speed adjusted:0～4000RPM;
Double series of graduates: 45CC, 150CC;
Volume of oil tank: 60L;
Temperature stabllization:40±2℃;
Test oil-filtering unit: 5u;
DC. Supply: 12V/24V;
Feed pressure: 0～4MPa (high), 0～0.4MPa (low);
Air pressure: 0～0.3MPa;
3-phase electrical supplies: 380V/50HZ/3PH or 220V/60HZ/3ph.  (or on request);
Flywheel inertia’s moment: 0.8kg·m2;
Shaft height (from the mounting bed to the center of the shaft axle): 125mm;
Output power: 5.5kw, 7.5kw, 11kw, 15kw (or on request);
Overall dimensions: 2000×1050×1650(mm);
Net weight: 800kg.
