CRS-826C is a multifunctional test bench, it can test common rail pump, injector of BOSCH, SIEMENS, DELPHI and DENSO and piezo injector. It can add EUI/EUP test system and CAT C7 C9,test CAT 320D common rail pump, CAT hydraulic middle pressure actuation pump and mechanical fuel injection pump,VP37,VP44,RED4.
It simulates the injection principle of common rail motor completely, test by flow sensor with more precise and stable measurement. test data are all controlled and obtained by industrial computer by real time, 21〃 LCD screen display makes the data more clear, more than 6000 kinds of data.
This model can fulfill the remote assistance by internet and make the maintenance easy to operate.
Feature
1. Main drive adopts the speed controlled by frequency system.

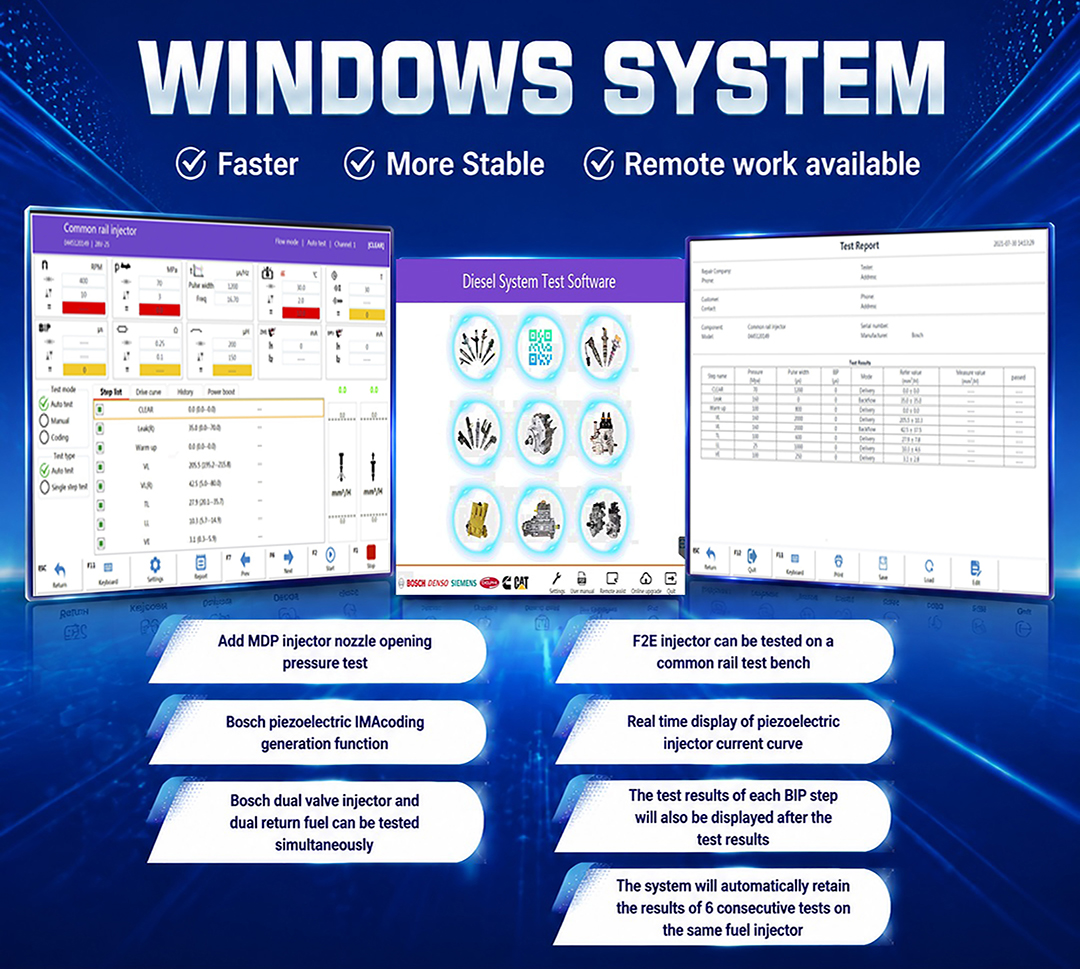

2. Industrial computer control in real time, linux or Win 7 operating system.
3. DRV control rail pressure,measured and controlled in real time
4. Forced cooling control system control oil temperature.
5. Injector drive signal pulse is adjustable.
6. It has short circuit protection function.
7. It has monitor display of DC 24V 12V 5V.
8. Use out source of air supply.
9. Highest pressure 2600bar.
10. Software data upgrade easily.
11. It can measure dynamic armature travel.
12. Remote control for technical service.
Function
Common rail pump test:
1. Test brands:BOSCH、DENSO、DELPHI、SIEMENS CUMMINS、CAT320D.
2. Test the sealing of common rail pump.
3. Test the internal pressure of common rail pump.
4. Test ratio solenoid of common rail pump.
5. Test feed pump function of common rail fuel pump.
6. Test flow of common rail pump.
7. Test rail pressure in real time.
Common rail injector test:
1. Test brands:BOSCH、DENSO、DELPHI、SIEMENS、CUMMINS and piezo injector.
2. Test the sealing of injector.
3. Test the pre-injection of the injector.
4. Test the maximum oil quantity of the injector.
5. Test the starting oil quantity of the injector.
6. Test the average oil quantity of the injector.
7. Test the oil return quantity of the injector.
8. Test capacitance detection for piezo injectors.
9. Testdetect Bosch 6, 7, 8, 9 bit, Denso 16, 22, 24, 30 bit, Delphi C2i, C3i coding.
10. Test detect the resistance and inductance of ordinary injector solenoid valve.
Mechanic fuel pump test:
When testing a mechanical pump, you need to clean the inside and outside of the pump before installing it on the test bench.
1. Test 8 cynlinder mechanical pump,Test oil supply of each cylinder at different speed, 8 pump speed presetting,use out source of air supply.
2. Statically check the oil supply time of each cylinder;
3. Check the performance of the mechanical governor;
4. Test of the solenoid valve of the distribution pump;
5. Check the performance of the pneumatic governor;
6. Check the performance of the pressure compensator;
Optional function

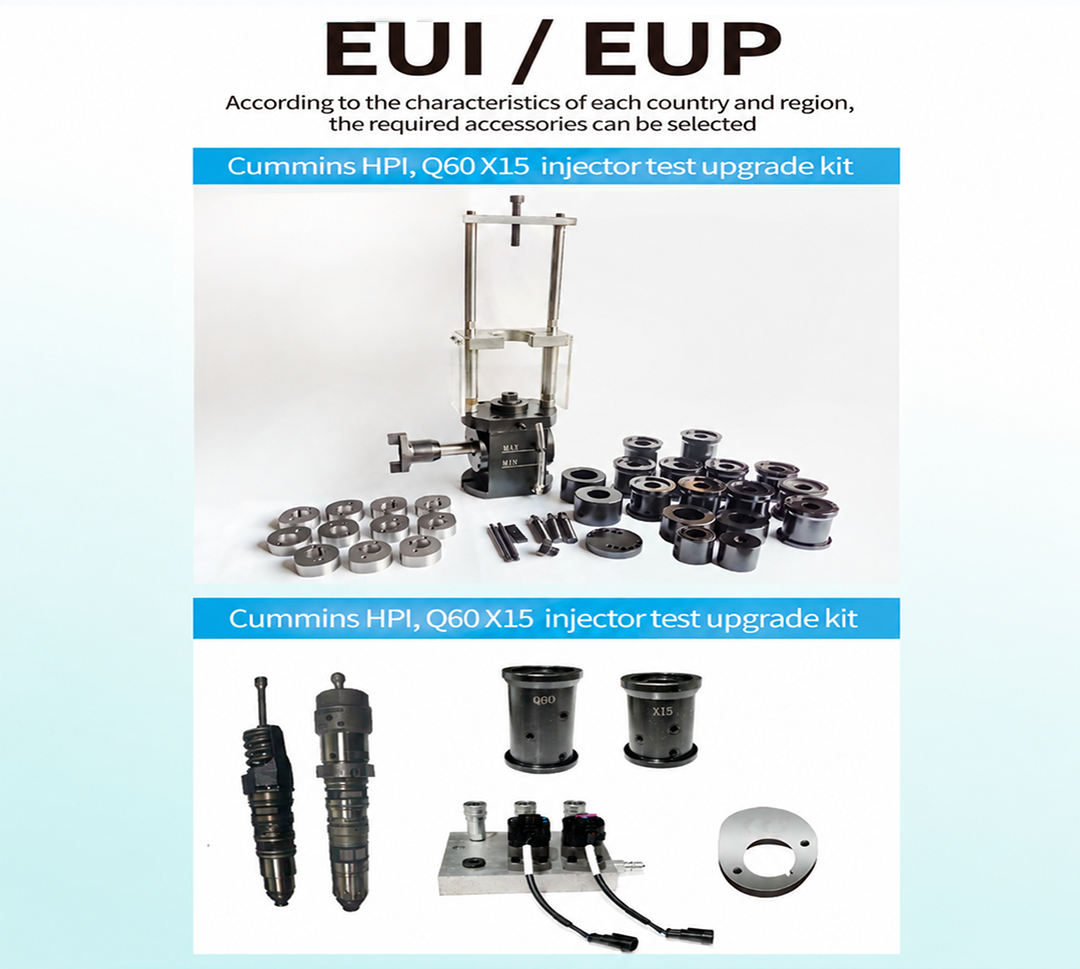

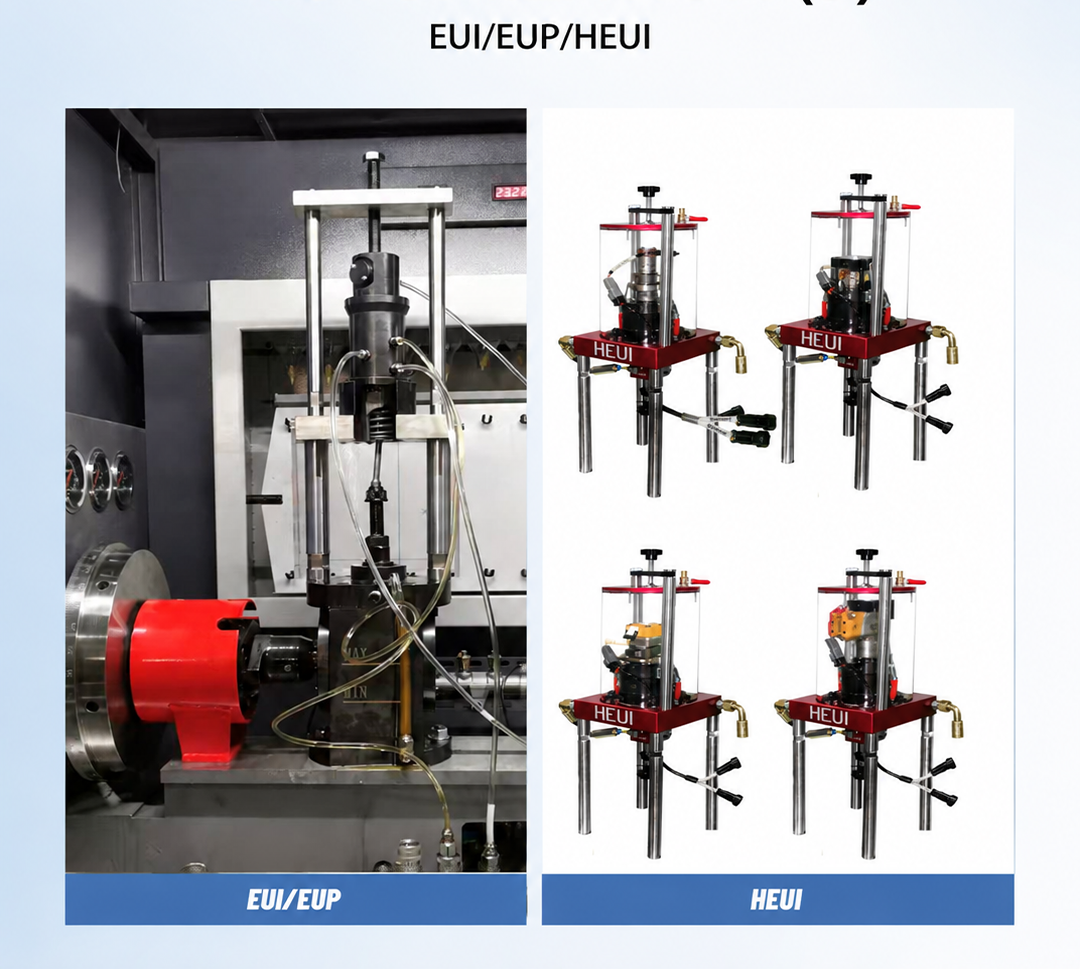

1. EUI/EUP.

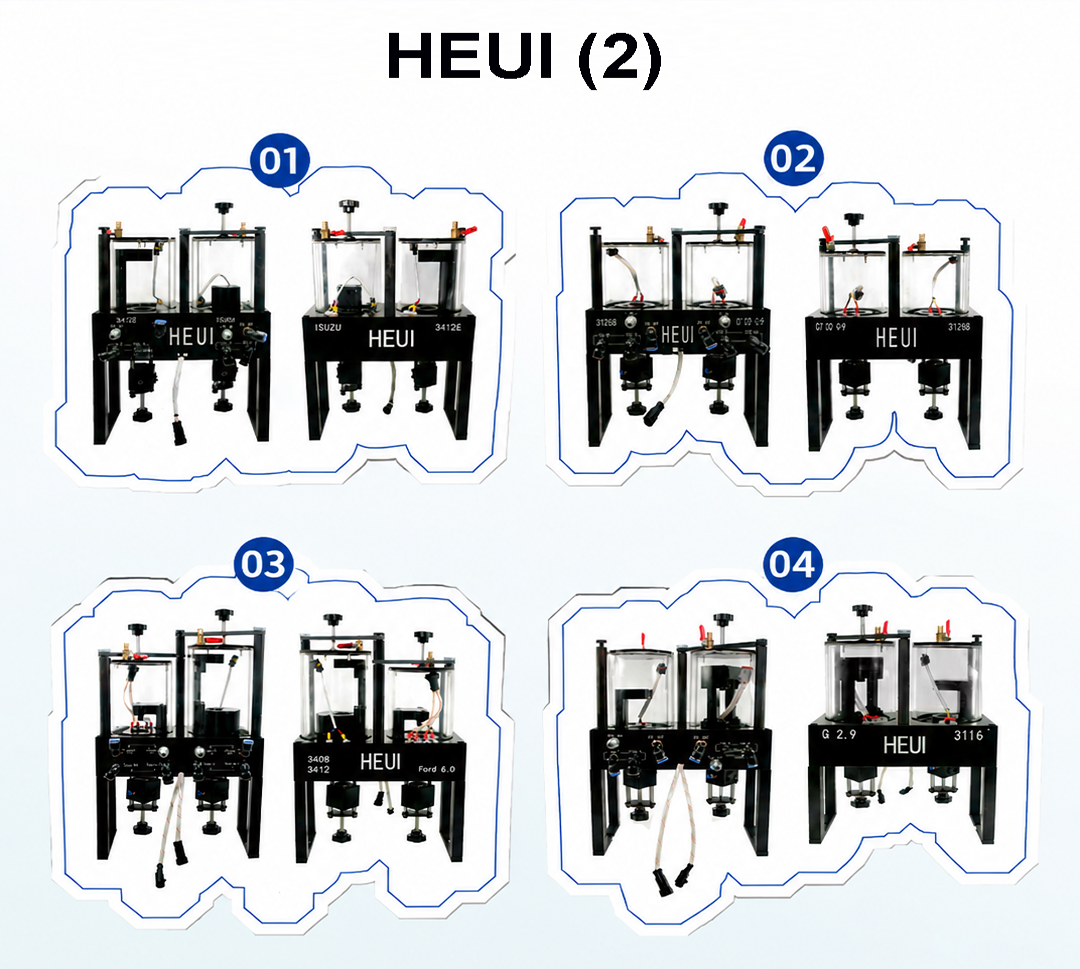

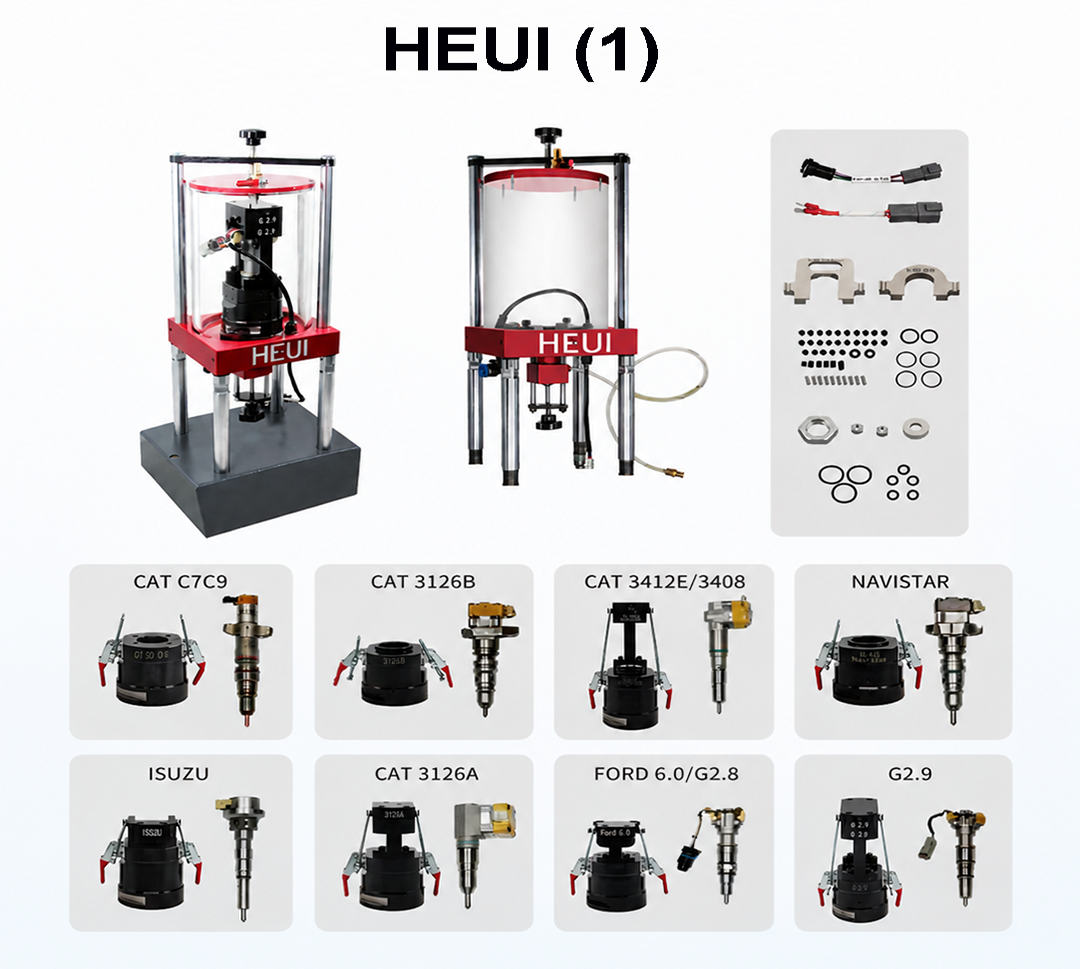

2. CAT HEUI middle pressure common rail injector,HEUI actuating pump.
3. Injector BIP.
4. The opening pressure NOP of the injector test.
5. Injector opening pulse width MDP test.

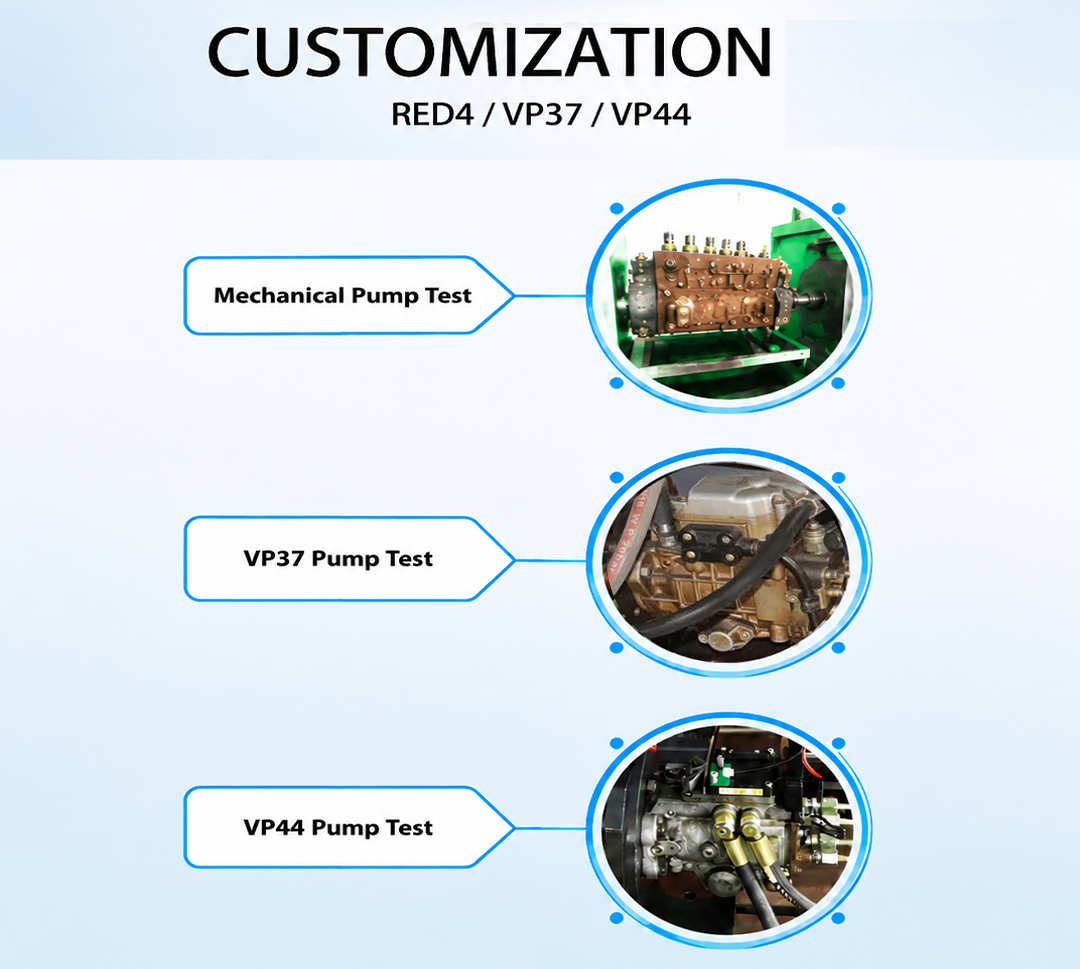

6. VP37 RED4 VP44 test module.
7. PT pump test.
8. Measurement of injector dynamic armature stroke (AHE).
9. IART 6-pin intelligent injector test.

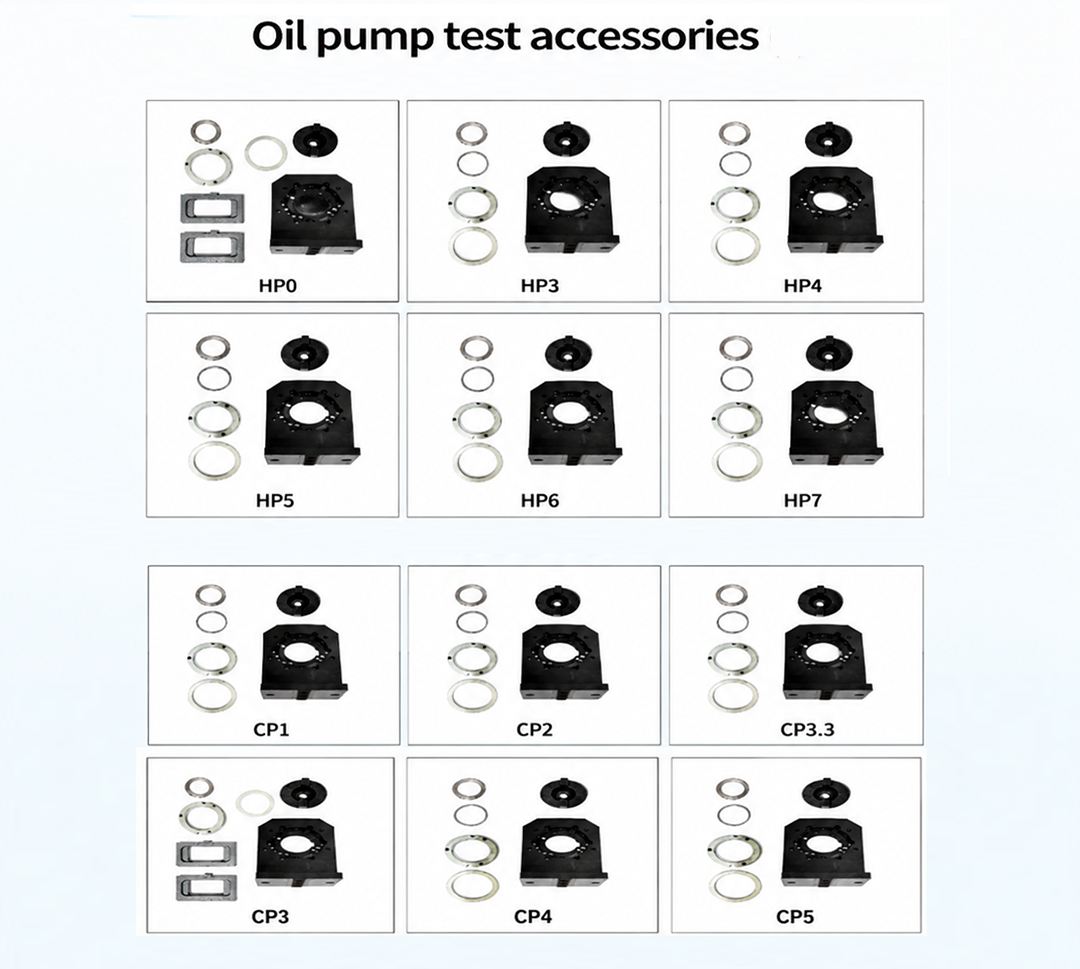

10. HP5/HP6 common rail pump test.
11. F2E EUI test.

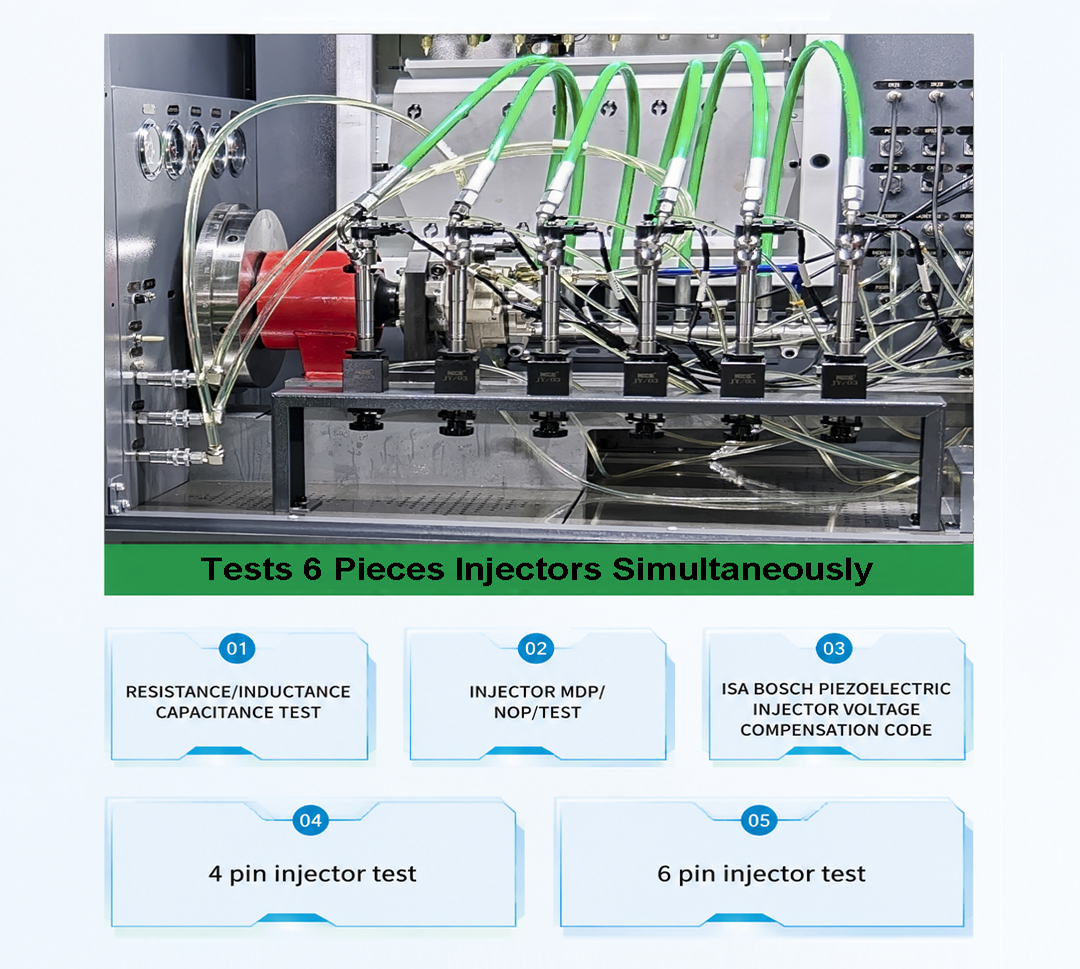

12. 6 pieces injectors test simultaneously.
Technical Parameter
1. Pulse width: 0.1-3ms adjustable.
2. Fuel temperature: 40±2℃.
3. Rail pressure: 0-2600 bar.
4. Oil temperature control: heating/The fan cooling control system
5. Test oil filtered precision: 5μ.
6. Input power: AC 380V/50HZ/3Phase or 220V/60HZ/3Phase;
7. Rotation speed: 100~3000RPM;
8. Power output: 15KW.
9. Fuel tank volume: 60L. Engine oil tank volume: 30L.
10. Common rail pump: Bosch CP3.3
11. Control loop voltage: DC24V/12V
12. Center height: 125MM.
13. Big and small glass cynlinders one set each: 45ml and 150ml.
14. Oil supply pressure: 0-1.0Mpa.
15. Flywheel inertia: 0.8KG.M2
16. Overall dimension(MM): 2100×1510×2230.
17. Weight: 1100 KG.
