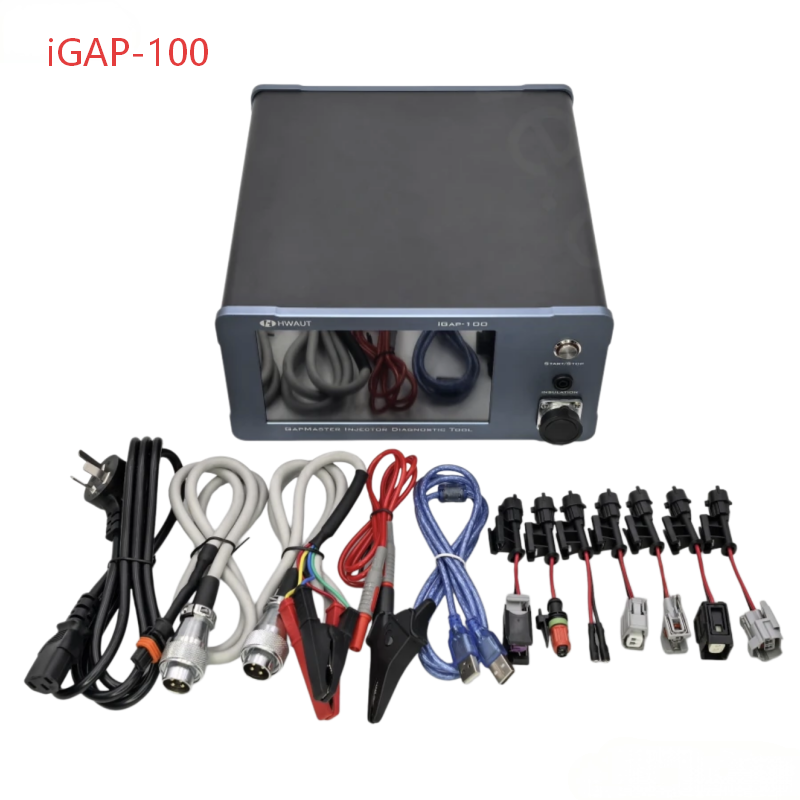

IGap-100 All-in-One Diesel Injector Diagnostic System Solenoid Injector Tester
- 6-in-1 Full Testing Modes：Covers injection drive, electrical parameter, insulation, armature gap, dynamic stroke and response time test, realizes full injector health inspection.
- 7-inch HD Touchscreen：Clear display of data and waveforms, simple touch operation, adapt to workshop working environment.
- Embedded Intelligent System：Support offline operation and local data storage, no external PC needed, easy to generate test reports.
- High Testing Precision：Adopts advanced sensors to deliver stable and accurate test data.
- Wide Global Voltage：AC 100V~240V wide voltage design, stable use in all regions.
- Multi-language Support：EN/RU/ES/PT/CN multiple languages, friendly for global users.
- Easy to Operate：Built-in standard judgment criteria, beginners can operate proficiently quickly.
Parameter
| Item | Specifications |
|---|---|
| Compatible Injector | Solenoid Type (Bosch, Denso, Delphi, etc.) |
| Display | 7-Inch HD Touchscreen |
| System | Embedded Intelligent OS (Support Firmware Upgrades) |
| Injection Frequency | 1Hz — 30Hz |
| Pulse Width Range | 0 — 6000μs |
| Power Input | AC 100V — 240V |
| Testing Function | Drive, Resistance, Inductance, Insulation, Stroke, Response Time |
| Dimensions | 300mm x 255mm x 125mm |
